What is a tooth anatomy diagram?

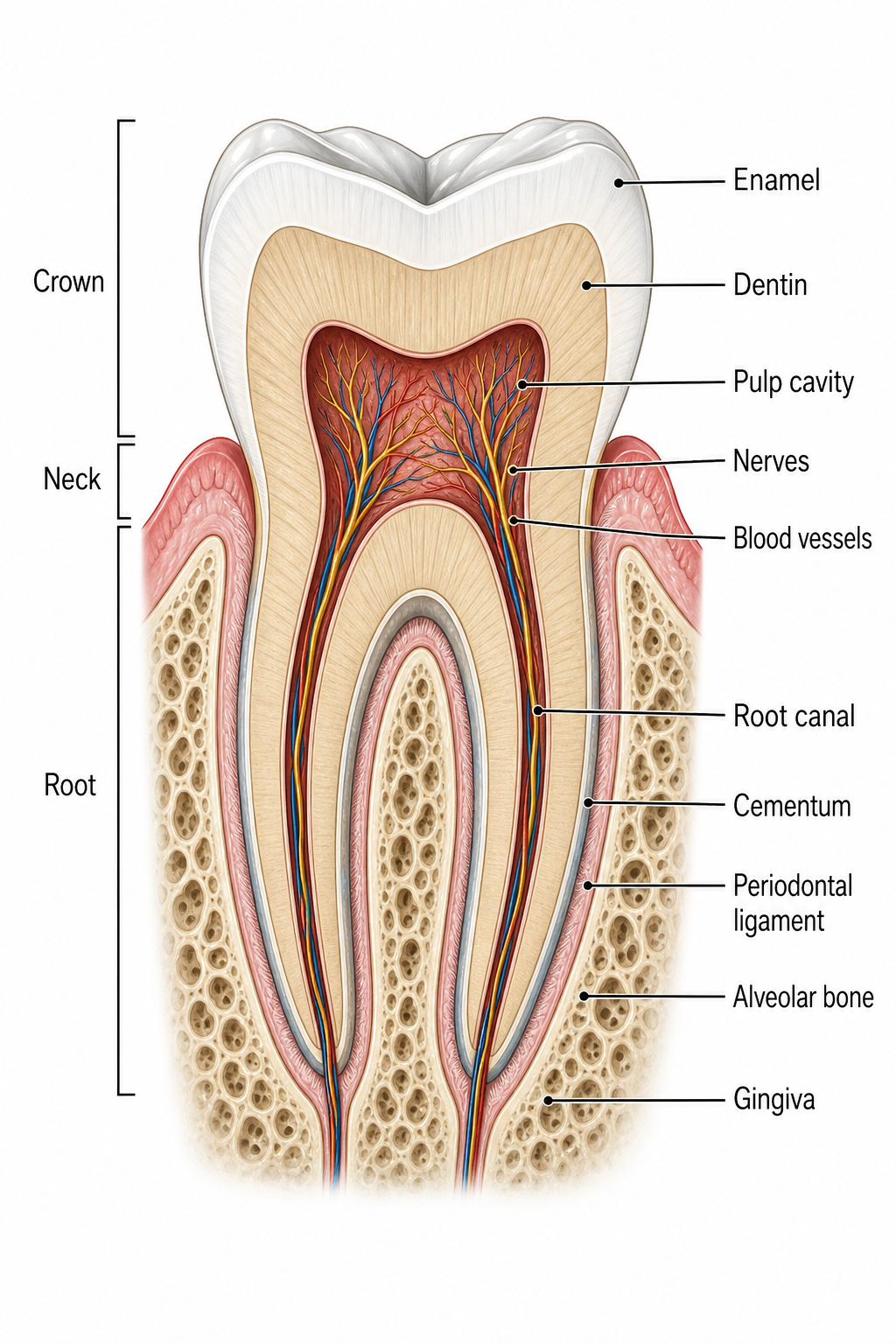

A tooth anatomy diagram is a longitudinal section that divides the tooth into crown, neck and root and names the tissues in order: the enamel shell, the dentin beneath it, and the pulp cavity carrying nerves and blood vessels down the root canal. Around the root it shows the cementum, the periodontal ligament that suspends the tooth, the alveolar bone and the gingiva. The same section is what dentistry uses to explain decay, because each stage is defined by the tissue it has reached. SciDraw AI draws these tissues in correct proportion from a short description. The same description also gives you the classroom version: ask for an unlabeled section with empty leader lines and you get a printable worksheet students can label themselves, then generate the labeled version to hand out as the answer key.
Why you need a tooth diagram
- Name the tissues from enamel through to the pulp.
- Compare incisors, canines, premolars and molars.
- Explain decay stage by stage against the tissue it reaches.
- Create figures for worksheets, slides and patient education.
- Support dental and health science study with accurate anatomy.
How to make a tooth diagram
Describe the tooth and the level of detail you need — a full cross-section, a magnified view of the enamel and dentin, the four tooth types compared, or the stages of decay — and say whether you want every tissue named or an unlabeled version with blank leader lines for students to complete. Add "clean white background, print-friendly" when the diagram is going onto a worksheet. SciDraw AI generates the figure at 2K resolution ready for slides or handouts, and you can refine and regenerate until it matches your lesson.
Parts of a tooth
- Crown, neck and root, the three regions of the tooth.
- Enamel, the hard mineral outer layer.
- Dentin, the bulk of the tooth beneath the enamel.
- Pulp cavity and root canal, holding nerves and vessels.
- Cementum and the periodontal ligament anchoring the root.
- Alveolar bone and gingiva surrounding the tooth.
Frequently Asked Questions
What are the layers of a tooth?
From the outside in, the crown is covered by enamel, the hardest tissue in the body. Beneath it lies dentin, which makes up most of the tooth and carries microscopic tubules. At the centre is the pulp cavity, holding nerves, blood vessels and connective tissue, which continues down the root canal. The root is covered by cementum and held in the alveolar bone by the periodontal ligament.
How do I make a labeled tooth diagram online?
Open the generator above, describe the section you need and name the tissues you want labeled. SciDraw AI creates an accurate dental diagram in seconds that you can download in 2K and use anywhere. No drawing skills or design software required.
What are the four types of teeth?
Incisors are chisel-shaped with a single root, for cutting. Canines are pointed with a single long root, for tearing. Premolars have two cusps and usually two roots, for crushing. Molars are the largest, with several cusps and two or three roots, for grinding.
How does tooth decay progress?
Decay begins as demineralisation of the enamel, visible as a white spot and often painless. It then breaks through into a cavity in the enamel, causing sensitivity to cold and sweet. Once it reaches the dentin the tubules carry sensation to the pulp and toothache begins. If it reaches the pulp itself, infection can spread to the root apex and form an abscess.
Is the tooth diagram generator free to use?
You can start generating tooth diagrams for free. New accounts get 10 credits on signup and 5 more each day, and a standard 2K diagram costs 5 credits. Paid plans add a monthly credit allowance if you produce many figures.
Can I use these tooth diagrams in class or coursework?
Yes. The diagrams are designed for biology, dental and health science education, and are also clear enough for patient education handouts. Download in high resolution so labels stay sharp when printed or projected.
Can I generate an unlabeled or blank tooth diagram?
Yes. Describe the section you want drawn and ask SciDraw AI to leave the labels off, or to use numbered leader lines pointing to empty boxes. You get the same accurate cross-section with no text on it, ready for students to label themselves.
Can I use the generated tooth diagram as a worksheet and answer key?
Yes. Generate the blank section first with empty numbered leader lines and print it as the labeling worksheet, then generate a fully labeled version to use as the answer key. Ask for the same view and the same numbering in both prompts so the two sheets line up.
