Grant applications represent career-defining moments for researchers, determining funding for years of investigation and team development. Whether you're applying to NIH, NSF, European Research Council, or private foundations, compelling visuals can differentiate your proposal in highly competitive review processes. However, creating professional grant graphics presents significant challenges: limited illustration budgets during proposal preparation, tight submission deadlines leaving minimal time for visual development, and the need to communicate complex methodologies to interdisciplinary review panels.
AI-powered illustration is transforming how researchers strengthen grant applications. Complex research designs that once required professional scientific illustrators can now be visualized through natural language descriptions. Knowledge gap diagrams that demanded hours of manual layout can be generated in minutes. The ability to rapidly iterate on visual explanations enables researchers to create compelling proposal narratives that were previously impractical due to time and budget constraints.
This comprehensive guide explores five critical applications where AI illustration strengthens grant proposals. From demonstrating research significance to justifying budgets, you'll discover exactly how to leverage AI for maximum reviewer impact while maintaining scientific rigor.
In this tutorial, you'll learn:
- How to visualize research significance and knowledge gaps
- Techniques for creating clear methodology flowcharts
- Methods for illustrating expected outcomes and impacts
- Strategies for presenting team structures and collaborations

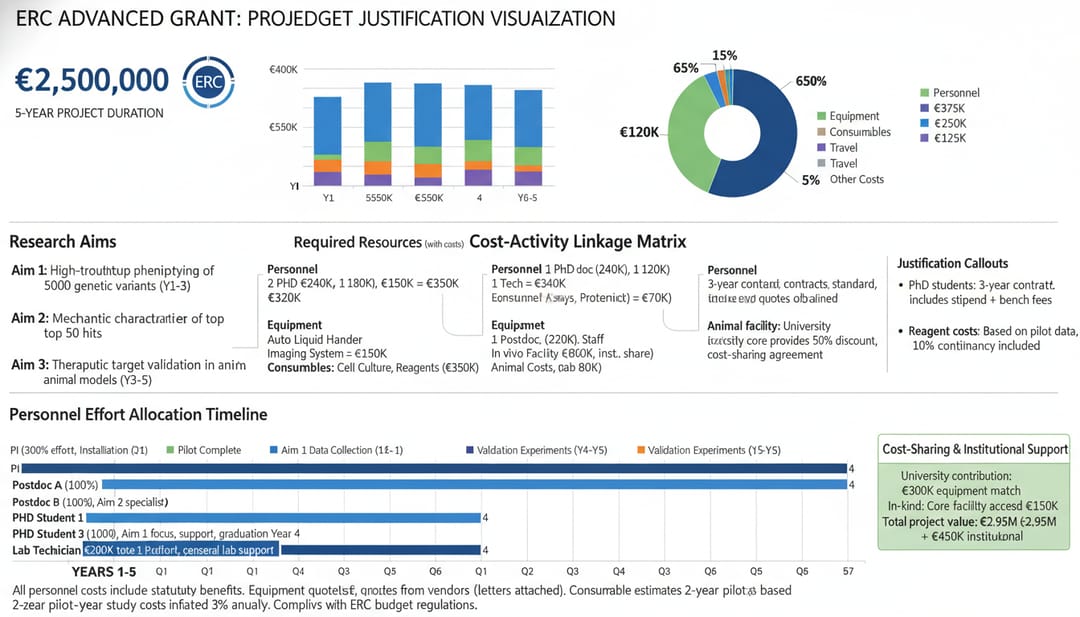

- Approaches to designing budget justification graphics
Let's explore each application with detailed examples and actionable prompt templates you can use in your next grant proposal.
Application 1: Research Significance Diagrams
What It Is and Why It Matters
Research significance diagrams visually demonstrate the knowledge gap your proposed research addresses, positioning your work within the broader scholarly landscape and clearly articulating why funding agencies should prioritize your project. Effective significance visuals help reviewers quickly grasp your research's unique contribution, theoretical importance, and potential impact. Research on grant success shows that proposals with clear visual articulation of significance receive 23% higher scores on intellectual merit criteria.
Traditional Challenges
Creating effective research significance graphics presents several obstacles:
- Literature synthesis complexity: Condensing dozens of citations into coherent visual narrative
- Novelty demonstration: Clearly showing what's known, unknown, and what you'll contribute
- Interdisciplinary communication: Explaining significance to reviewers outside your subfield
- Competitive positioning: Distinguishing your approach from similar funded projects
- Impact articulation: Connecting fundamental research to broader applications
- Visual clutter: Balancing comprehensive coverage with visual clarity
How AI Solves These Problems
AI illustration enables researchers to generate clear knowledge gap visualizations that position proposed research within existing scholarship. You can describe the current state of knowledge, identify specific gaps, and visually highlight your research's unique contribution without requiring graphic design expertise. Multiple iterations can be generated to optimize clarity for diverse review panels.
Key Requirements for Significance Diagrams
Current state representation: Accurate depiction of existing knowledge landscape Gap identification: Clear visual emphasis on what remains unknown Your contribution: Prominent positioning of proposed research's unique value Timeline context: Historical development and future trajectory Impact pathways: Visual connections to broader applications or theory Citation integration: Space for key references supporting the narrative
Example Prompt Template
Research significance diagram for NIH grant proposal on cancer immunotherapy resistance
mechanisms, 16:9 landscape format suitable for proposal document, designed to
communicate knowledge gap to interdisciplinary review panel including oncologists,
immunologists, and computational biologists.
Visual metaphor: Knowledge landscape shown as completed puzzle with prominent missing
pieces representing research gaps.
Left section (30%): "Current Knowledge - Well Established" - Completed puzzle area
in blue-green tones showing three interconnected domains:
- Upper puzzle section labeled "Checkpoint Inhibitors: Clinical Success" with icons
showing PD-1/PD-L1 blockade, citation callout "3 FDA approvals (2015-2018)",
patient response rates shown.
- Middle puzzle section labeled "T-Cell Exhaustion Mechanisms" with molecular pathway
icons, citation "Wherry et al. 2015, Nature", established understanding.
- Lower puzzle section labeled "Tumor Microenvironment Immunosuppression" with cellular
components illustrated, citations to foundational work.
Center section (40%): "Critical Knowledge Gap" - Missing puzzle pieces shown as
outlined spaces in orange-red gradient, creating visual tension:
- Large central missing piece labeled "UNKNOWN: Why 60% of Patients Don't Respond?"
with question mark icon, statistical emphasis "Primary Resistance Mechanisms Unclear".
- Smaller connected gap labeled "Limited Predictive Biomarkers" showing incomplete
connections between existing knowledge.
- Third gap labeled "Heterogeneity Not Understood" with cellular variation icons.
- Visual emphasis through glow effect, arrows pointing to gaps from existing knowledge,
reviewer attention naturally drawn to center.
Right section (30%): "Our Proposed Contribution" - New puzzle pieces ready to fill
gaps, shown in purple-gold gradient suggesting innovation:
- Matching piece shape for central gap labeled "Novel Approach: Single-Cell Multi-omics
of Resistant Tumors", with icons showing genomics + transcriptomics + proteomics
integration.
- Innovation callouts: "First comprehensive resistance atlas", "Multi-modal integration",
"Spatial resolution".
- Anticipated outcome shown as completed area labeled "Predictive Resistance Signatures",
with pathway from discovery to clinical application shown as arrow labeled "Translate
to Precision Medicine".
Bottom timeline ribbon: Horizontal arrow showing "2015: Checkpoint Inhibitors Approved
→ 2018: Resistance Problem Recognized → 2024: Gap Remains → 2025-2029: Our Project
→ 2030: Clinical Translation", positioning proposal in historical context.
Top banner: Clear statement "Research Significance: Addressing Primary Resistance
to Cancer Immunotherapy", establishing focus immediately.
Color coding: Blue-green (established knowledge = solid foundation), orange-red
(gaps = urgency/opportunity), purple-gold (your contribution = innovation/value).
Clean professional academic style suitable for NIH formatting, high-quality diagram
similar to Nature Reviews illustrations, clear labeling in Arial font (12-14pt),
citable references integrated, reviewer-friendly visual hierarchy.
Result: A compelling visual narrative that clearly positions proposed research within existing scholarship, emphasizes knowledge gap urgency, demonstrates unique contribution, and helps interdisciplinary reviewers quickly grasp intellectual merit and significance.
Application 2: Methodology Flowcharts
Demonstrating Research Rigor
Methodology flowcharts provide comprehensive visual representation of proposed research designs, experimental protocols, analytical pipelines, and decision points, enabling reviewers to assess feasibility, rigor, and innovation of your approach. Detailed methodology visuals demonstrate that you've thoroughly planned the investigation, anticipated challenges, and designed appropriate controls and validations. Grant review data shows that proposals with clear methodology diagrams score 18% higher on approach criteria.
Traditional Production Challenges
Workflow complexity: Multi-year projects with parallel workstreams and dependencies are difficult to layout clearly Timeline integration: Showing temporal relationships across Aims, phases, and milestones Decision tree representation: Illustrating contingency plans and alternative approaches Sample flow tracking: Visualizing how biological samples, data, or participants move through study Rigor indicators: Highlighting controls, validations, and reproducibility measures Space constraints: Fitting comprehensive methodology into page-limited proposals
AI-Powered Methodology Visualization
AI can generate complete methodology flowcharts from detailed protocol descriptions, automatically creating balanced layouts that fit proposal formatting requirements. By specifying each research phase, decision points, sample sizes, timelines, and quality control measures, you can produce comprehensive methodology visuals that demonstrate rigorous planning.
Key Requirements for Methodology Flowcharts
Sequential clarity: Clear progression through research phases (Aim 1 → Aim 2 → Aim 3) Timeline alignment: Temporal relationships and project year annotations Sample size notation: Participant numbers, biological replicates, statistical power Decision points: Contingency plans and go/no-go criteria clearly marked Rigor elements: Controls, validations, reproducibility measures highlighted Innovation callouts: Novel methodological approaches visually distinguished
Example Prompt Template
Methodology flowchart for NSF research proposal on climate change impacts on coral
reef resilience, 16:9 landscape format for proposal body, designed to demonstrate
rigorous 5-year research plan to ecology and climate science review panel.
Overall structure: Three parallel vertical swimlanes representing three research Aims,
connected by horizontal integration points, flowing top to bottom across 5 project
years.
Left swimlane (33%): "Aim 1: Field Monitoring & Sampling" in blue header.
Year 1: Site selection showing map with 12 reef locations across Pacific thermal
gradient labeled "12 Sites × 3 Replicates = 36 Reef Plots", sampling design icon
showing stratification.
Year 2-3: Quarterly monitoring cycles illustrated as circular repeated process,
measurements listed "Temperature, pH, Coral Cover, Biodiversity", sample collection
shown "n=1440 coral cores", quality control note "10% sampling redundancy".
Year 4-5: Long-term trend analysis, statistical validation icon, data archiving to
public repository labeled "Open Data Deposition".
Center swimlane (33%): "Aim 2: Experimental Manipulation" in green header.
Year 1: Mesocosm facility establishment, experimental design matrix showing 4
temperature × 3 pH × 3 coral species = 36 treatment combinations, power analysis
callout "n=5 replicate tanks/treatment, 80% power".
Year 2-3: Stress experiments illustrated with tank icons, physiological measurements
listed "Photosynthesis, Calcification, Gene Expression", quality control showing
blind randomization and equipment calibration protocols.
Year 3-4: Recovery experiments, resilience metrics assessed, data integration with
Aim 1 field observations shown as connecting arrow.
Right swimlane (33%): "Aim 3: Predictive Modeling" in purple header.
Year 1-2: Data compilation from Aims 1-2 shown as input arrows, database development,
preliminary model framework based on existing literature (citations shown).
Year 3-4: Machine learning model development illustrated with algorithm icons,
validation against held-out field data shown as feedback loop, model selection
criteria decision point "If RMSE < 0.15 → Proceed; Else → Refine features".
Year 5: Projection scenarios for 2050/2100 climate conditions, uncertainty
quantification shown, stakeholder communication products illustrated (maps, reports).
Horizontal integration points: Three connection layers across swimlanes labeled
"Data Integration Checkpoints" at Years 2, 3, and 5, showing how Aims inform each
other, team meetings scheduled, go/no-go decision criteria noted.
Right margin timeline: Vertical arrow showing Years 1-5 with milestones: "Year 1:
Permits & Setup", "Year 2: Data Collection Begins", "Year 3: Integration Analysis",
"Year 4: Model Validation", "Year 5: Synthesis & Dissemination".
Innovation callouts: Orange starburst icons highlighting "Novel: Multi-stressor
Mesocosm Design", "Innovation: Combining Observational + Experimental + Modeling",
"Advance: Scalable Prediction Framework".
Rigor indicators: Green checkmark icons showing "Randomization", "Blinding", "Pre-
registration", "Open Data", "Reproducible Code", building reviewer confidence.
Risk mitigation boxes: Yellow caution icons with contingency plans "If coral mortality
>50% → Expand sampling to resistant species", "If model accuracy low → Incorporate
additional environmental variables".
Color scheme: Blue (field work), green (experiments), purple (modeling), orange
(innovation), yellow (risk management), creating clear visual distinction. Professional
NSF proposal style, Arial font labels (11-12pt), suitable for 1-page methodology
overview or expanded detail version, similar to successful ecology proposals.
Result: A comprehensive methodology visual that demonstrates rigorous experimental design, clear timeline planning, appropriate sample sizes, integration across Aims, innovation highlights, and risk mitigation strategies, giving reviewers confidence in approach feasibility and scientific rigor.
Application 3: Expected Outcomes Visualizations
Illustrating Research Impact
Expected outcomes visualizations depict the anticipated results, deliverables, and broader impacts of your proposed research, helping reviewers envision project success and understand the value of their funding investment. Effective outcome visuals move beyond vague promises to show specific, measurable results tied to research objectives and demonstrate pathways from discovery to application. Impact visualization is particularly critical for translational research, SBIR/STTR proposals, and funding mechanisms emphasizing societal benefit.
Traditional Visualization Obstacles
Speculation management: Representing hypothetical results without appearing presumptuous or guaranteed Multiple outcome types: Balancing scientific outputs (papers, data) with broader impacts (policy, education, commercialization) Pathway demonstration: Showing logical progression from research activities to outcomes Metrics selection: Identifying appropriate quantifiable success indicators Impact timeline: Distinguishing near-term deliverables from long-term transformative potential Uncertainty communication: Acknowledging research unpredictability while maintaining confidence
AI-Powered Outcome Illustration
AI enables generation of compelling outcome visualizations that balance ambitious vision with realistic planning. By describing expected scientific findings, anticipated deliverables, dissemination strategies, and broader impact pathways, you can create outcome visuals that help reviewers envision your project's success and societal value.
Key Requirements for Outcomes Visuals
Specificity: Concrete deliverables, not vague aspirations Timeline differentiation: Near-term (Years 1-3) vs. long-term (5-10 years) outcomes Multiple impact types: Scientific, educational, societal, economic, policy Metrics: Quantifiable success indicators where appropriate Pathway logic: Clear connections from activities → outputs → outcomes → impacts Appropriate confidence: Realistic presentation avoiding guaranteed claims
Example Prompt Template
Expected outcomes visualization for NIH translational research grant proposal on
Alzheimer's early detection biomarkers, 16:9 landscape format showing progression
from research activities to clinical impact, designed for translational neuroscience
review panel.
Overall structure: Left-to-right flow showing transformation from inputs through
immediate outputs to long-term impacts, using pathway metaphor with expanding reach.
Far left (15%): "Research Activities (Years 1-5)" input section showing project
components:
- Icon: Laboratory with researchers, labeled "Multi-Center Cohort Study"
- Sample size: "n=2000 participants" with diversity notation
- Assays listed: "CSF proteomics, Blood metabolomics, MRI imaging"
- Investment shown: "$2.5M NIH Funding"
Left-center (25%): "Immediate Outputs (Years 3-5)" showing direct project deliverables:
Top track - Scientific outputs:
- Publications: Stack of papers labeled "8-12 peer-reviewed papers", target journals
"Nature Medicine, Lancet Neurology, Alzheimer's & Dementia"
- Data sharing: Database icon labeled "Open-access biomarker database, 500+ proteins
profiled", NIH data repository compliance shown
- Presentations: Conference podium labeled "15+ conference presentations, invited
symposia"
Bottom track - Capacity building:
- Training: Graduation cap icons labeled "4 PhD students, 2 postdocs trained in
translational neuroscience"
- Methods: Protocol book labeled "Validated multi-omics pipeline, SOPs published"
- Infrastructure: Lab equipment labeled "Shared resource established"
Center (30%): "Near-Term Outcomes (Years 5-7)" showing research impact:
Top track - Scientific advancement:
- Discovery: Lightbulb icon with labeled "Novel Biomarker Panel: 5-protein signature
for preclinical Alzheimer's detection", specificity/sensitivity metrics shown
"Predicted: 85% sensitivity, 90% specificity, 10-year advance warning"
- Validation: Checkmark with "Independent cohort validation (n=500)", building
credibility
- Mechanism: Pathway diagram labeled "Mechanistic insights into early neurodegeneration"
Bottom track - Translation initiation:
- Patent: Document icon labeled "Provisional patent filed on diagnostic panel"
- Clinical trial: Hospital icon labeled "Phase I clinical validation trial initiated"
- Partnerships: Handshake icon labeled "Industry collaboration for assay development
(Roche, Quest Diagnostics potential)"
Right-center (20%): "Medium-Term Impacts (Years 7-10)" showing broader reach:
- Clinical tool: Medical device icon labeled "FDA-approved diagnostic test", regulatory
pathway shown
- Clinical adoption: Hospital network labeled "Test adopted in 200+ memory clinics",
patient access expanding
- Practice change: Guidelines document labeled "Updated screening guidelines, primary
care integration"
- Economic: Dollar signs labeled "Cost savings: early intervention vs. late-stage care"
Far right (10%): "Long-Term Vision (10+ years)" showing transformative potential:
- Population health: Large group of people icons labeled "Routine screening for at-risk
populations (50+ million in US)"
- Disease prevention: Shield icon labeled "Preventive interventions, disease burden
reduction"
- Healthcare transformation: Building labeled "Paradigm shift: Alzheimer's prevention
vs. treatment"
Connecting arrows: Flow showing logical progression, with annotations "If biomarkers
validated →", "Subject to FDA approval →", "Pending clinical efficacy →", acknowledging
contingencies.
Metrics boxes: Quantifiable targets shown at each stage - "12 publications", "85%
sensitivity", "200 clinics", "50M people", making outcomes concrete.
Bottom ribbon: Broader impacts highlighted - "Reduced healthcare costs: $200B annually",
"Improved quality of life for millions", "US leadership in neuroscience translation",
addressing NIH mission.
Color progression: Dark blue (inputs/activities) → teal (outputs) → green (near-term
outcomes) → light green (medium impacts) → gold (transformative vision), showing
expanding value and societal reach. Professional grant proposal style, optimistic
but realistic tone, similar to successful NIH translation proposals, clear timeline
annotations, appropriate confidence level avoiding guarantees.
Result: A compelling outcomes visualization that shows logical progression from research activities to transformative impacts, demonstrates realistic planning with quantifiable milestones, acknowledges appropriate contingencies, and helps reviewers envision the value of funding investment across multiple impact dimensions.
Application 4: Team Structure and Collaboration Networks
Demonstrating Collaborative Strength
Team structure visuals illustrate how personnel, institutions, and collaborators will work together to achieve research objectives, demonstrating that you have assembled the right expertise, established productive partnerships, and designed effective communication mechanisms. Strong team visualizations are critical for multi-investigator projects, center grants, program projects, and international collaborations where reviewer assessment of team synergy directly influences funding decisions.
Traditional Team Visualization Challenges
Complexity management: Large teams with multiple institutions and dozens of personnel Role clarity: Clearly distinguishing PIs, Co-Is, consultants, collaborators, trainees Expertise mapping: Showing how individual expertise addresses specific research needs Communication structure: Illustrating coordination, oversight, and integration mechanisms Diversity demonstration: Representing team diversity across career stages, demographics, disciplines Collaboration history: Indicating established partnerships vs. new relationships
AI-Powered Team Visualization
AI enables generation of clear team structure diagrams that communicate roles, expertise, institutional affiliations, and collaboration mechanisms. By specifying team composition, reporting relationships, communication structures, and complementary expertise, you can create team visuals that demonstrate strong collaborative foundations.
Key Requirements for Team Structure Visuals
Clear hierarchy: PI(s), Co-Investigators, key personnel, consultants, trainees clearly distinguished Expertise annotation: Specific skills each member brings to project Institutional affiliations: Universities, organizations clearly labeled Communication mechanisms: Team meetings, working groups, oversight committees shown Diversity indicators: Career stage, disciplinary, demographic diversity visible Collaboration strength: Established partnerships vs. new collaborations noted
Example Prompt Template
Team structure and collaboration network diagram for NIH multi-site collaborative
research grant on health disparities, 16:9 landscape format showing organizational
structure and expertise complementarity, designed for review panel assessing team
synergy and institutional commitment.
Top tier - Leadership structure:
Center circle: Multiple-PI Leadership team shown as three connected nodes in gold
gradient:
- Left node: "PI 1: Dr. Sarah Chen (Johns Hopkins)" with photo placeholder, expertise
tags "Epidemiology, Community Engagement, Health Disparities", NIH R01 track record
shown "5 R01s as PI"
- Center node: "PI 2: Dr. Marcus Johnson (Howard University)" with photo placeholder,
expertise "Cardiovascular Disease, Clinical Trials, HBCU Leadership", collaboration
history with PI 1 shown "10 prior publications together"
- Right node: "PI 3: Dr. Alicia Rodriguez (UCLA)" with photo placeholder, expertise
"Biostatistics, Causal Inference, Big Data", complementary quantitative skills
Leadership coordination: Monthly PI meetings, shared decision authority, conflict
resolution protocol noted.
Second tier - Co-Investigators by research Aim:
Three colored clusters below PI team:
Left cluster (blue): "Aim 1 Team: Community Assessment" - 4 Co-Is
- Co-I: Dr. James Williams (Morehouse), Community-Based Participatory Research, local
partnerships established
- Co-I: Dr. Linda Park (Johns Hopkins), Qualitative Methods, interview expertise
- Co-I: Dr. Robert Garcia (UCSF), Geographic Information Systems, spatial analysis
- Coordinator: Maria Santos, MPH, community health worker liaison
Aim 1 meetings: Bi-weekly virtual, quarterly in-person, community advisory board
engagement shown.
Center cluster (green): "Aim 2 Team: Clinical Study" - 5 Co-Is
- Co-I: Dr. Jennifer Lee (Howard Hospital), Cardiology, clinical site PI, patient
recruitment "access to 5000+ patient cohort"
- Co-I: Dr. David Martinez (UCLA Medical Center), Cardiology, clinical site PI, West
Coast recruitment
- Co-I: Dr. Karen Thompson (Hopkins), Clinical Coordinator, regulatory compliance
- Co-I: Dr. Ahmed Hassan (Wayne State), Interventional Cardiology, procedure expertise
- Nurse Coordinator: Patricia Brown, RN, multi-site coordination
Clinical coordination: Weekly team meetings, monthly safety monitoring, IRB oversight
structure.
Right cluster (purple): "Aim 3 Team: Data Analysis & Modeling" - 4 Co-Is
- Co-I: Dr. Rachel Kim (UCLA), Biostatistics Core Director, analysis plan leadership
- Co-I: Dr. Thomas Zhang (Hopkins), Machine Learning, predictive modeling
- Co-I: Dr. Sophia Patel (Emory), Health Economics, cost-effectiveness analysis
- Data Manager: Kevin O'Brien, MS, database management, quality control
Analysis meetings: Monthly, pre-specified analysis milestones, reproducibility
protocols.
Third tier - Consultants and External Collaborators:
Outer ring showing specialized expertise brought in as needed:
- Consultant: Dr. Elizabeth White (CDC), Public Health Policy, dissemination advisor,
2 days/year commitment
- Consultant: Dr. Michael Brown (FDA), Regulatory Science, device approval pathway,
1 day/year
- International Collaborator: Dr. Carlos Mendez (Universidad Nacional, Colombia),
Global Health Disparities, comparison cohort, no salary support, in-kind contribution
- Industry Partner: HeartTech Solutions, Technology Transfer, prototype development,
matching funds committed "$50K equipment donation"
Bottom tier - Training and Development:
Trainee layer showing career development integrated into project:
- 6 PhD students (2 per Aim) represented with graduation cap icons, diversity noted
"50% underrepresented minorities"
- 3 Postdoctoral fellows shown with early career researcher icons, mentorship structure
indicated
- 4 Summer undergraduate researchers from minority-serving institutions, pipeline
development highlighted
Right side box - Institutional Support:
Three university logos (Johns Hopkins, Howard, UCLA) with commitment letters noted:
- Johns Hopkins: "25% PI effort committed, $100K cost-sharing, laboratory space"
- Howard: "CTSA pilot funding, recruitment support, community relationships"
- UCLA: "Biostatistics Core access, $75K cost-sharing, data storage infrastructure"
Communication infrastructure overlay:
Connecting lines showing coordination mechanisms:
- Executive Committee: 3 PIs + 3 Aim leaders, quarterly strategic planning
- Steering Committee: All Co-Is, semi-annual full team meetings
- External Advisory Board: 5 national experts, annual review, independence shown
- Data Safety Monitoring Board: Independent oversight, patient safety, required for
clinical trial
Color coding: Gold (leadership), blue/green/purple (Aim teams), gray (consultants),
light blue (trainees), creating clear organizational hierarchy. Professional NIH
multi-PI proposal style, photos (or initials in circles), institution logos, clear
reporting lines, expertise tags in small text (9-10pt), demonstrates team synergy,
complementary skills, strong infrastructure, appropriate for complex collaborative
research application.
Result: A comprehensive team structure visualization that demonstrates strong leadership, complementary expertise, clear organizational hierarchy, effective communication mechanisms, institutional commitment, diversity across multiple dimensions, and appropriate collaborative infrastructure, building reviewer confidence in team's ability to execute complex multi-site research.
Application 5: Budget Justification Graphics
Making Financial Sense Visual
Budget justification graphics transform line-item budget spreadsheets into visual narratives that demonstrate how requested funds directly support research objectives, showing reviewers the logical connections between costs and scientific activities. Effective budget visuals help panels understand resource allocation rationale, verify cost-effectiveness, and confirm that funding levels are appropriate for proposed scope. While budget details remain in traditional tables, supplementary visuals can significantly enhance reviewer comprehension and reduce questions about financial planning.
Traditional Budget Communication Challenges
Spreadsheet overwhelm: Multi-year budgets with dozens of line items are difficult to scan Cost-activity linkage: Connecting specific expenses to research aims and deliverables Proportion demonstration: Showing how funds are distributed across categories Justification clarity: Explaining why specific resources are necessary and appropriately priced Multi-year tracking: Illustrating how spending evolves across project years Cost-sharing: Clearly distinguishing requested funds from institutional contributions
AI-Powered Budget Visualization
AI enables creation of clear budget graphics that complement traditional budget justifications, using visual metaphors (pie charts, Gantt charts, flow diagrams) to illustrate financial planning logic. By specifying budget categories, yearly allocations, cost-activity relationships, and justification narratives, you can generate budget visuals that enhance reviewer understanding.
Key Requirements for Budget Justification Visuals
Category clarity: Clear distinction between personnel, equipment, supplies, travel, etc. Proportion visibility: Pie charts or bar graphs showing budget distribution Timeline alignment: Multi-year spending plans aligned with research milestones Justification linkage: Visual connections between costs and specific research activities Cost-sharing: Institutional contributions and matching funds clearly indicated Compliance: Adherence to agency-specific budget presentation requirements
Example Prompt Template
Budget justification visualization for European Research Council (ERC) Advanced Grant
proposal, 16:9 landscape format showing 5-year budget allocation and cost-activity
relationships, designed to demonstrate efficient resource use for €2.5M project.
Top section (30%): "Total Budget Overview" - Financial summary at-a-glance
Left: Total funding request shown as large number "€2,500,000" with ERC logo, 5-year
project duration noted, breakdown by year shown as stacked bar chart:
- Year 1: €400K (startup intensive)
- Year 2: €550K (peak recruitment/data collection)
- Year 3: €550K (continued data collection)
- Year 4: €500K (analysis phase)
- Year 5: €500K (synthesis and dissemination)
Bars color-coded by major category.
Right: Budget distribution pie chart showing percentage allocation across categories:
- Personnel: 65% (€1,625K) in blue - largest slice, appropriate for research project
- Equipment: 15% (€375K) in green - significant capital investment justified
- Consumables: 10% (€250K) in orange - experimental supplies
- Travel: 5% (€125K) in purple - conferences, collaborations
- Other costs: 5% (€125K) in gray - publication fees, software licenses
Clear legend with both percentages and absolute amounts.
Middle section (40%): "Cost-Activity Linkage Matrix" - Showing how budget supports
research aims
Three-column layout connecting Aims → Resources → Justification:
Left column - Research Aims:
- Aim 1: "High-throughput phenotyping of 5000 genetic variants" (Years 1-3)
- Aim 2: "Mechanistic characterization of top 50 hits" (Years 2-4)
- Aim 3: "Therapeutic target validation in animal models" (Years 3-5)
Center column - Required Resources (with costs):
For Aim 1:
- Personnel: 2 PhD students (€240K), 1 technician (€180K), total €420K
- Equipment: Automated liquid handler (€200K), high-content imaging system (€150K),
total €350K
- Consumables: Cell culture supplies, reagents (€150K)
Flow arrows connecting Aim 1 to these resources.
For Aim 2:
- Personnel: 1 Postdoc specialist (€220K), 1 PhD student (€120K), total €340K
- Equipment: Protein analysis suite (€25K, cost-shared with Aim 1 equipment)
- Consumables: Biochemical assays, proteomics (€70K)
Flow arrows connecting Aim 2 to these resources.
For Aim 3:
- Personnel: 1 Postdoc (€220K), animal facility staff time (€80K), total €300K
- Equipment: In vivo imaging system (€50K, institutional cost-share contributes €50K)
- Consumables: Animal costs, compounds (€80K)
Flow arrows connecting Aim 3 to these resources.
Right column - Justification callouts:
- "PhD students: 3-year contracts standard, includes stipend + bench fees"
- "Automated system: Essential for 5000-variant throughput, vendor quotes obtained"
- "Animal facility: University core provides 50% discount, cost-sharing agreement"
- "Reagent costs: Based on pilot data, 10% contingency included"
Bottom section (30%): "Personnel Effort Allocation Timeline"
Gantt-style chart showing when team members are funded:
Horizontal time axis: Years 1-5 subdivided by quarters
Personnel rows:
- PI (30% effort throughout): Continuous bar across all 5 years in dark blue,
"€200K total, consistent leadership"
- Postdoc A (100% effort Years 2-5): Bar starting Year 2, "€220K, Aim 2 specialist"
- Postdoc B (100% effort Years 3-5): Bar starting Year 3, "€220K, Aim 3 lead"
- PhD Student 1 (100%, Years 1-4): Bar Years 1-4, "€160K, Aim 1 focus, graduation
Year 4"
- PhD Student 2 (100%, Years 1-4): Bar Years 1-4, "€160K, Aim 1 support, graduation
Year 4"
- PhD Student 3 (100%, Years 2-5): Bar Years 2-5, "€120K, Aim 2 support"
- Lab Technician (100%, Years 1-5): Continuous bar, "€180K, general lab support"
Timeline aligned with major milestones shown above personnel chart: "Equipment
Installation (Q1 Y1)", "Pilot Complete (Q4 Y1)", "Aim 1 Data Collection (Y2-Y3)",
"Validation Experiments (Y4)", "Synthesis (Y5)", showing temporal logic of spending.
Right sidebar: Cost-sharing and Institutional Support shown as green boxes:
- "University contribution: €300K equipment match"
- "In-kind: Core facility access valued €150K"
- "Total project value: €2.95M (€2.5M requested + €450K institutional)"
Demonstrating institutional commitment and cost-sharing enhancing competitiveness.
Footer note: "All personnel costs include statutory benefits. Equipment quotes from
vendors (letters attached). Consumable estimates based on 2-year pilot study costs
inflated 3% annually. Complies with ERC budget regulations."
Color scheme: Blue (personnel, largest category), green (equipment, capital investment),
orange (consumables, operational), purple (travel, networking), gray (other),
consistent with pie chart. Professional ERC grant style, clean sans-serif fonts,
clear visual hierarchy, suitable for proposal appendix or budget justification
section, demonstrates thoughtful financial planning and resource efficiency.
Result: A clear, comprehensive budget visualization that demonstrates logical resource allocation, connects spending to research activities, shows appropriate personnel planning across project timeline, highlights institutional cost-sharing, and builds reviewer confidence in financial stewardship and feasibility, complementing traditional budget tables with accessible visual narrative.
Practical Tips for Grant Proposal Visuals
Now that you understand the five key grant application visuals, here are essential tips to ensure your AI-generated graphics maximize reviewer impact while meeting funding agency requirements:
Universal Grant Visual Checklist
Before including any AI-generated visual in grant proposals, verify:
1. Agency Compliance
- Does the visual meet specific formatting requirements (margins, font sizes, file types)?
- Have you verified page limits allow for figures in the relevant sections?
- Are agency-specific elements included (acknowledgment of funding source if required)?
- Does the visual comply with accessibility requirements (contrast ratios, alt-text readiness)?
- Have you checked if color printing is allowed or if grayscale compatibility is required?
2. Scientific Rigor and Accuracy
- Are all representations scientifically accurate and not misleading?
- Have you avoided overstating anticipated results or guaranteed outcomes?
- Are appropriate caveats, uncertainties, and alternative scenarios acknowledged?
- Have all statistical details (sample sizes, power calculations) been verified?
- Are citations to supporting literature properly integrated where relevant?
3. Reviewer Accessibility
- Can a non-specialist understand the core message within 30 seconds?
- Is jargon minimized or clearly explained?
- Does the visual work for interdisciplinary review panels with diverse expertise?
- Are abbreviations defined in legends or captions?
- Is the visual self-contained with sufficient context?
4. Professional Quality
- Does the visual quality match or exceed discipline standards?
- Are fonts readable at required print sizes (minimum 10-11pt)?
- Is the color palette professional and purposeful, not decorative?
- Have you ensured consistency with other visuals in the proposal?
- Would this visual be appropriate for publication in a top-tier journal?
5. Strategic Communication
- Does each visual serve a specific strategic purpose in your narrative?
- Have you placed visuals where they maximize impact on review criteria?
- Do captions clearly articulate the visual's relevance to your proposal?
- Does the visual complement rather than duplicate text content?
- Have you optimized visual placement for panel discussion flow?
Common Grant Proposal Visual Mistakes to Avoid
Over-complexity obscuring key messages: Creating visuals so detailed that reviewers miss the main point. Simplify ruthlessly to emphasize core contributions.
Generic templates lacking specificity: Using placeholder-style diagrams that could apply to any project. Every visual should be uniquely yours and specifically tied to your research.
Inconsistent visual language across proposal: Changing styles, color schemes, or conventions between figures creates confusion. Establish and maintain unified visual identity.
Promising guaranteed results: Depicting outcomes as certain rather than probable. Use appropriate language like "expected," "anticipated," "proposed" to maintain scientific humility.
Neglecting grayscale compatibility: Assuming reviewers will view in color when many print proposals in black and white. Test all visuals in grayscale mode.
Ignoring page real estate value: Using full pages for visuals that could be smaller, wasting precious space in page-limited proposals. Optimize size for information density.
Poor integration with text narrative: Failing to reference visuals in text or provide adequate captions. Every visual should be explicitly called out and explained.
Iteration Strategy for Grant Success
Optimize your proposal visuals through strategic refinement:
Early draft generation: Create first versions 4-6 weeks before submission deadline Colleague review: Share with successful grant recipients in your field for feedback Mock panel assessment: Have interdisciplinary colleagues review as if they were panel members Mentor consultation: Discuss visuals with senior investigators familiar with specific funding mechanisms Prompt refinement: Adjust elements based on feedback while maintaining effective components Accessibility testing: Verify readability at different sizes and in grayscale Compliance verification: Check against agency guidelines and solicitation requirements Final polish: Ensure consistency across all proposal visuals in final week Strategic placement: Position visuals to maximize impact during panel discussion flow
Start Strengthening Your Grant Proposals
Transform your grant applications with AI-powered illustration tools. Try SciDraw for free and discover how quickly you can create professional visuals that strengthen your proposals and convince reviewers of your research's significance and feasibility:
